Export Packing Scheme of Drum Flaker
Equipment protection scheme
Overall dimension of machine: 6300 × 2900 × 2900 mm

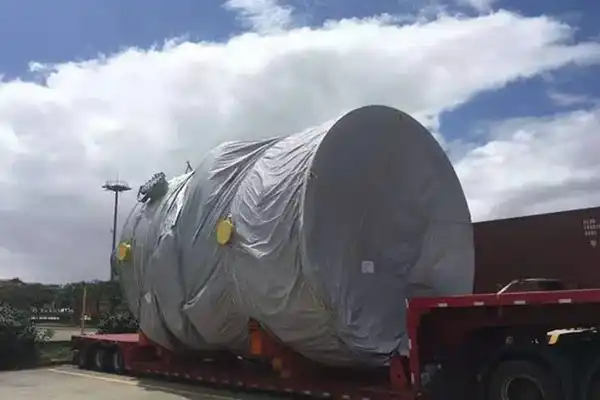

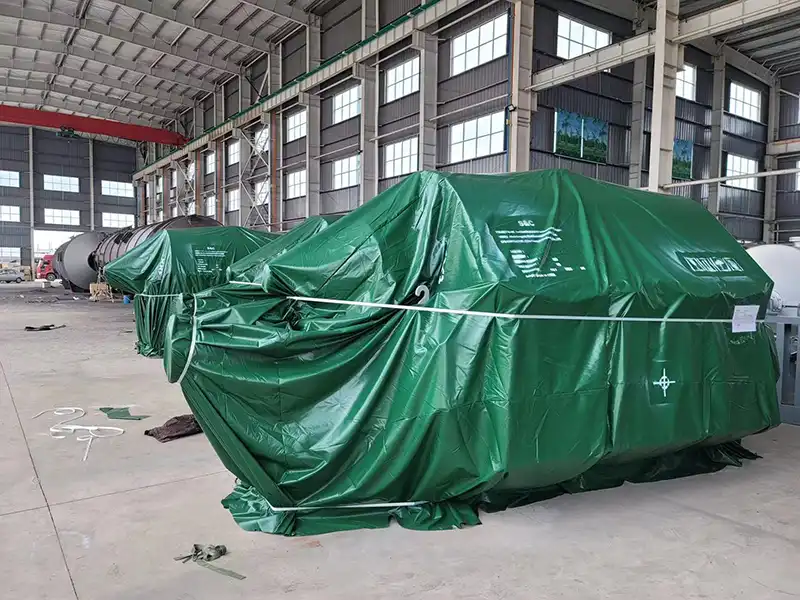

The overall equipment shall be covered with plastic film for several times, and then covered with plastic bubble film for one time. The external part shall be covered with green rainproof and waterproof cover.
Equipment packaged as a whole

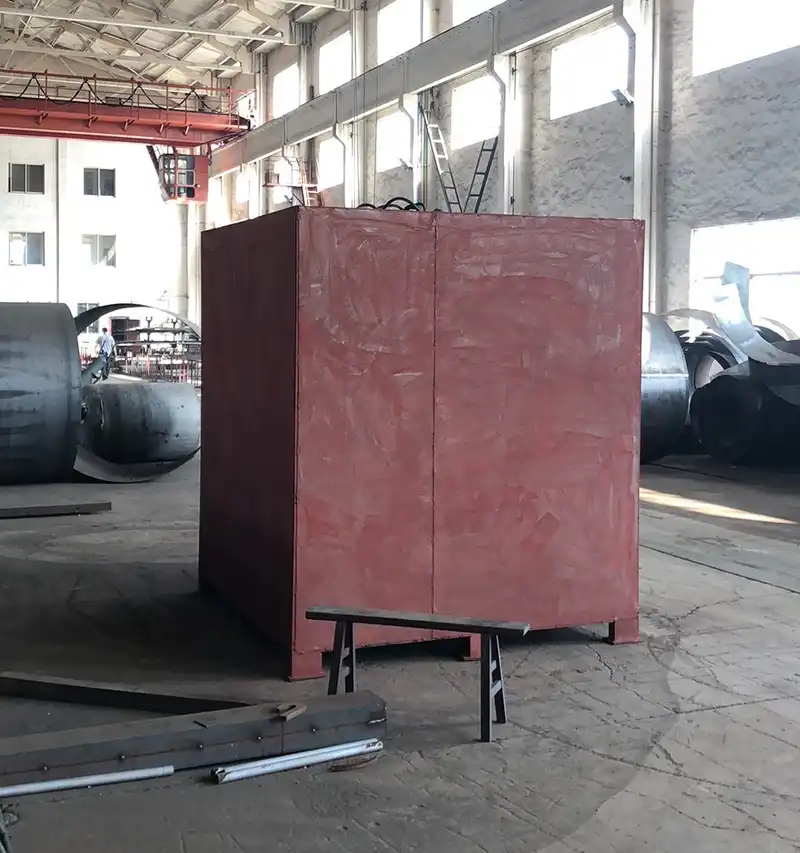

The external frame box of the equipment is made of channel steel for enclosure, and the external part is packaged with thin plates to completely cover the equipment. Four lugs welded to top of frame. Easy for lifting. Anti-corrosion paint for overall frame channel steel.
Fixing Method of Frame Box
The fixing method of the frame box usually depends on its structure and installation environment. Common fixing methods include:
Use bolts or welding. For frame boxes with bolt holes at the bottom, they can be fixed on sliding or sleepers, using bottom brackets and bolts to increase stability. For frame boxes without holes at the bottom but with bolt holes on the vertical surface, steel plates or L-shaped steel plates can be used for fixation. one hundred and twenty-three
Use blocking blocks and pressure bars. To prevent lateral movement of the frame box inside the box, blocking blocks and pressure bars can be used. The compression bar is a curved component, and the cross-section should be erected to increase its moment of inertia. It is best to connect the pressure bar to the bottom of the box with a pull rod and apply pressure to the product through bolts. twenty-three
Use support brackets. The function of support is to prevent the frame box from tipping or shaking during transportation. Support is a type of compression rod, with a thickness greater than 1/30 of its length and an inclination angle between 35 ° and 55 °. Its lower end can be supported by other components inside the box.

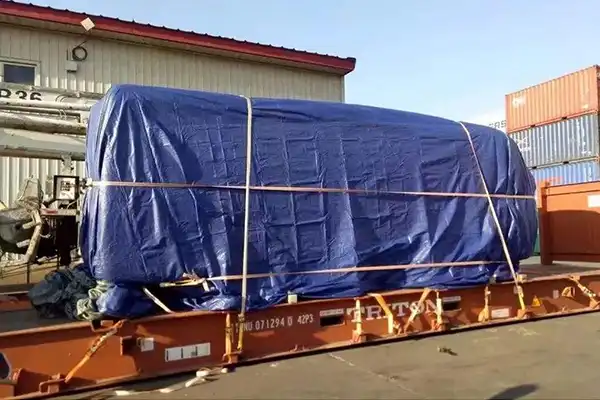

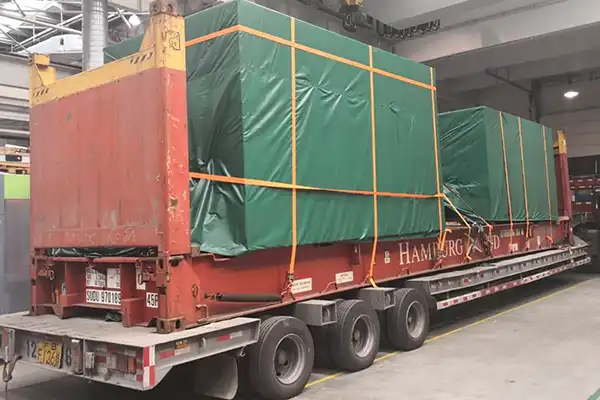

Use ropes or hooks. The rope fixing method is to use ropes to firmly fix the equipment inside the container. The iron hook fixation method is to connect the equipment inside the container to a bracket equipped with a hanging device or to fix it to the side wall of the container through ropes. four hundred and fifty-six
Use wood or synthetic materials. The wood fixation method is to use wood to fill the gap between the equipment and the container and maintain a stable state to avoid shaking and collision of the equipment during transportation. forty-six
Each method has its applicable scenarios and advantages and disadvantages, and the selection should consider the specific situation and transportation needs of the frame box.
